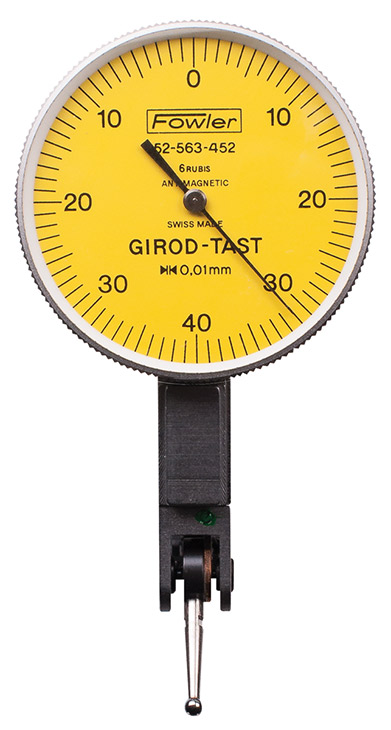

Fowler, 0.8mm Girod “Horizontal” Test Indicator, 52-563-452-0
The ultimate in Swiss workmanship, Fowler-Girod Indicators are internationally respected as "The Best.".
.
All Fowler-Girod Indicators meet or exceed Federal Specifications for accuracy. Their exceptional design and quality assures you a lifetime of accuracy and total reliability..
.
.
.
Features:.
• Monobloc body design has 7 fine jeweled bearings isolated in a shock-proof assembly.
separate from the outer body and cannot be influenced by external pressures. • Independent, interchangeable movement transmits measuring value via rack & pinion..
• Rugged anti-magnetic one-piece housing is satin-chrome plated to resist corrosion..
• Auto-reverse mechanism with adjustable ball bearings, provides ultra-smooth action..
• Carbide contact points (1⁄2" length) can swivel over 210° to reach any location..
• Universal mounting: dovetails supplied at top, front and back for proper set-up..
• Adjustable bezel and dial easily set and reset to zero. Microfine graduations on dials. Your choice of dial diameters..
• Replacement points: .040" No. 52-567-101-0; .080" No. 52-567-102-0 and .120" No. 52-567-103-0..
• Replacement dovetail clamping stems: 7⁄32" diameter No. 52-565-091-0 and 1⁄4" diameter .
No. 52-565-092..
• Price includes indicator, fitted case, carbide contact points (see chart), and two dovetail clamping stems: 7⁄32" and 1⁄4" diameter.
.
All Fowler-Girod Indicators meet or exceed Federal Specifications for accuracy. Their exceptional design and quality assures you a lifetime of accuracy and total reliability..
.
.
.
Features:.
• Monobloc body design has 7 fine jeweled bearings isolated in a shock-proof assembly.
separate from the outer body and cannot be influenced by external pressures. • Independent, interchangeable movement transmits measuring value via rack & pinion..
• Rugged anti-magnetic one-piece housing is satin-chrome plated to resist corrosion..
• Auto-reverse mechanism with adjustable ball bearings, provides ultra-smooth action..
• Carbide contact points (1⁄2" length) can swivel over 210° to reach any location..
• Universal mounting: dovetails supplied at top, front and back for proper set-up..
• Adjustable bezel and dial easily set and reset to zero. Microfine graduations on dials. Your choice of dial diameters..
• Replacement points: .040" No. 52-567-101-0; .080" No. 52-567-102-0 and .120" No. 52-567-103-0..
• Replacement dovetail clamping stems: 7⁄32" diameter No. 52-565-091-0 and 1⁄4" diameter .
No. 52-565-092..
• Price includes indicator, fitted case, carbide contact points (see chart), and two dovetail clamping stems: 7⁄32" and 1⁄4" diameter.
