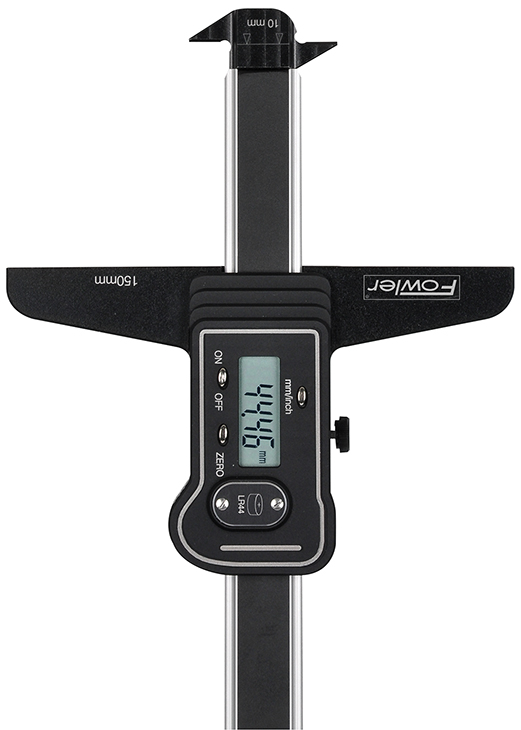

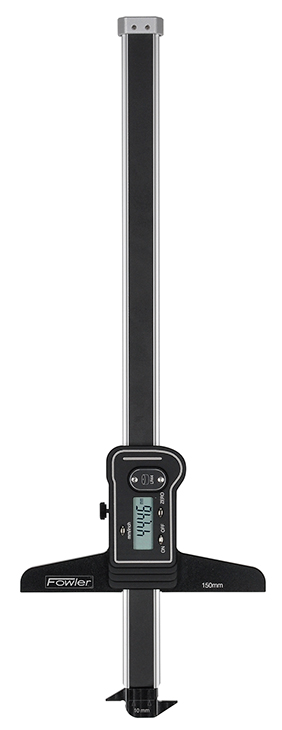

Fowler, 0-12”/0-300mm Light-Line Digital Depth Gage, 54-136-012-0
SKU
541360120
Special Price
$470.38
$533.77
- You Save: $63 (11.88%)
Light Line Digital Depth Gage Kit with Interchangeable bases. A light weight depth gage with 3 easily interchanged bases that will cover a variety of depth measuring applications. With an assortment of measuring contacts enabling the measurement of depths, gaps, grooves, steps and many other applications
• Light weight beam made of oxide coated aluminum with double inner prismatic guide ways for optimal guidance and sliding characteristics • Bases made of hard anodized aluminum, which are easily interchanged.
• Includes three base attachments: 150/300/450mm
• Includes two contact points (rotatable by 90 degrees: 3/5mm)
• Electronics feature on/off, floating zero and direct in/mm conversion
• 0.0005"/.01mm resolution and repeatability
• Made in Germany
• Uses 1 LR44 silver oxide battery (1 spare included)

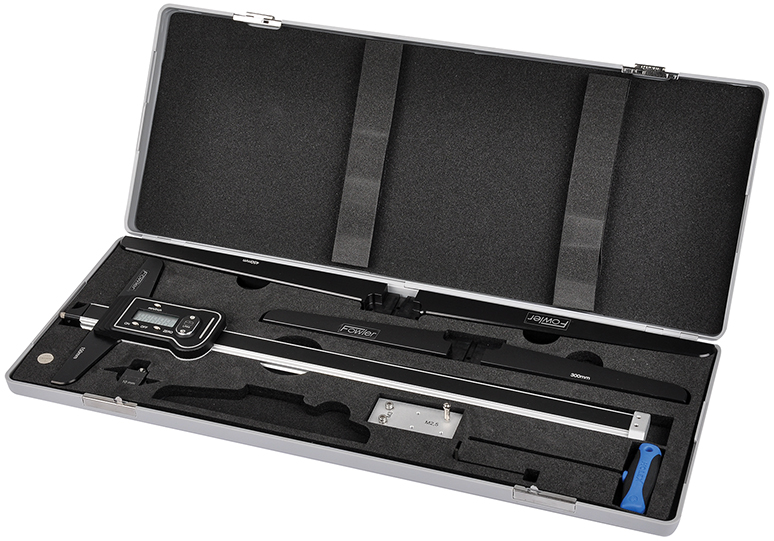

• Includes a fitted case, instructions, 2 spare base screws, 2 hex wrenches and test certificate
Range: 0-12″/0-300mm
Accuracy: 0.0015″/0.04mm
Resolution: 0.0005″/0.01mm
• Light weight beam made of oxide coated aluminum with double inner prismatic guide ways for optimal guidance and sliding characteristics • Bases made of hard anodized aluminum, which are easily interchanged.
• Includes three base attachments: 150/300/450mm
• Includes two contact points (rotatable by 90 degrees: 3/5mm)
• Electronics feature on/off, floating zero and direct in/mm conversion
• 0.0005"/.01mm resolution and repeatability
• Made in Germany
• Uses 1 LR44 silver oxide battery (1 spare included)
• Includes a fitted case, instructions, 2 spare base screws, 2 hex wrenches and test certificate
Range: 0-12″/0-300mm
Accuracy: 0.0015″/0.04mm
Resolution: 0.0005″/0.01mm
