Fowler, 0.008” Girod “Vertical” Test Indicator, 52-562-473-0

Fowler-Girod Test Indicators have long been regarded internationally as "the best", incorporating Swiss quality and workmanship. • Rugged one-piece housing, corrosion resistant with satin chrome finish. • For high accuracy and repeatability, six bearings are jeweled. Reinforced flanges. • Adjustable ball bearings guarantee perfect point movement under all conditions.
• Contact point can be displaced 210°. Automatic reversing contact point.
• Supplied with .040", .080" and .120" carbide contact points on all indicators except No. 52-562-474-0 and No. 52-563-474-0 which are supplied with only one point.
• Shockproof and nonmagnetic.
• Microfine graduations.
• Three dovetails; top, back and bottom for easy mounting and positioning
. • Measuring pressure—7 grams.
• Movement not influenced by any outside pressures, and measuring value transmitted by means of rack and pinion.
• Face Dia. 1" and 1-1⁄2" for easy reading.
• Adjustable bezel and dial are easily set and reset to zero.
• Inch series supplied with two dovetail clamping stems: 7⁄32" No. 52-565-091-0 and 1⁄4" No. 52-565-092-0. Metric series supplied with dovetail clamping stems: 5⁄32" (4mm) No. 52-565-090-0 & 5⁄16" (8mm) No. 52-565-093-0.
• Includes fitted case

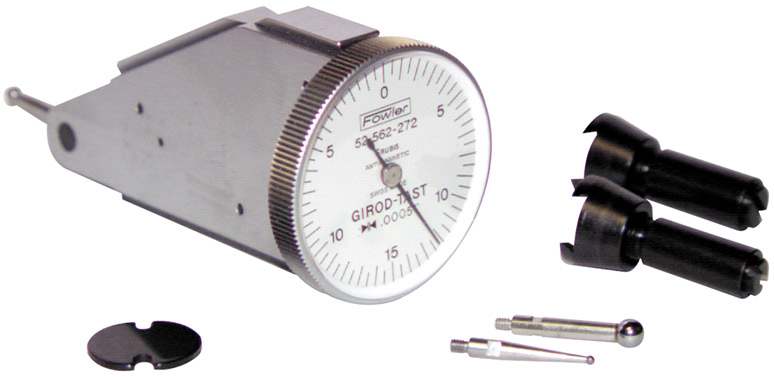

*Image shown for representational purposes only
